Visa Consumer Authentication Service (VCAS) is a service that verifies cardholder identity during online transactions—especially important for card-not-present purchases like those made on e-commerce websites.

VCAS is Visa’s EMV® 3-D Secure protocol (also known as 3DS 2.x) implementation. (Note: EMV® is a registered trademark of EMVCo, LLC, representing the global specifications used for secure payment technologies, including EMV® 3‑D Secure).

Its primary goals are to:

• Reduce fraud
• Ensure regulatory compliance
• Improve the user's authentication experience

Pismo supports Real Time Data Exchange (RDX) APIs to integrate into VCAS to help with transaction authentication decisions and provides a 3DS authentication service to clients based on a referral model. RDX allows the issuer to decide how much they would like to be involved in the transaction process by sharing data between VCAS and the issuer or issuer’s processor. This solution initially includes EMV 3DS and Visa network transactions.

Frictionless transactions require no user verification while friction transactions do require this. In this solution, PISMO in VCAS will provide three specific working flows with StepUp OTP for friction transactions and out-of-band (OOB) authentication, enabling VCAS configuration to support two use cases for the OTP challenge flow (e-mail and SMS), and additionally, having an in-app authentication (OOB) for Pismo’s customer banks.

Issuer webhooks

You, as the issuer, need to code the webhooks to implement Pismo's VCAS solution. These webhooks are detailed in Pismo's Client webhooks for VCAS guide:

• StepUp—Get authentication method/delivery channel and display text. For more information, refer to Stepup call in the Getting Started with RDX guide.
• Initiate Action—Request One-Time Passcode (OTP) action. For more information, refer to Initiate Action call in the Getting Started with RDX guide.
• Validate—Validate entered OTP verification code. For more information, refer to Validate call in the Getting Started with RDX guide.

📘

• PISMO will use RDX integration to communicate the StepUp method.
• Pismo does not share Payment Card Industry Data Security Standard (PCI-DSS) data.
• Pismo provides the encrypt/decrypt keys for the hashed PAN.

VCAS use cases

There are three main use cases for handling calls to VCAS with an OTP request.

1. VCAS generates, delivers, and validates the OTP.
2. Issuer generates, delivers, and validates the OTP.
3. VCAS generates, issuer delivers, and VCAS validates the OTP.

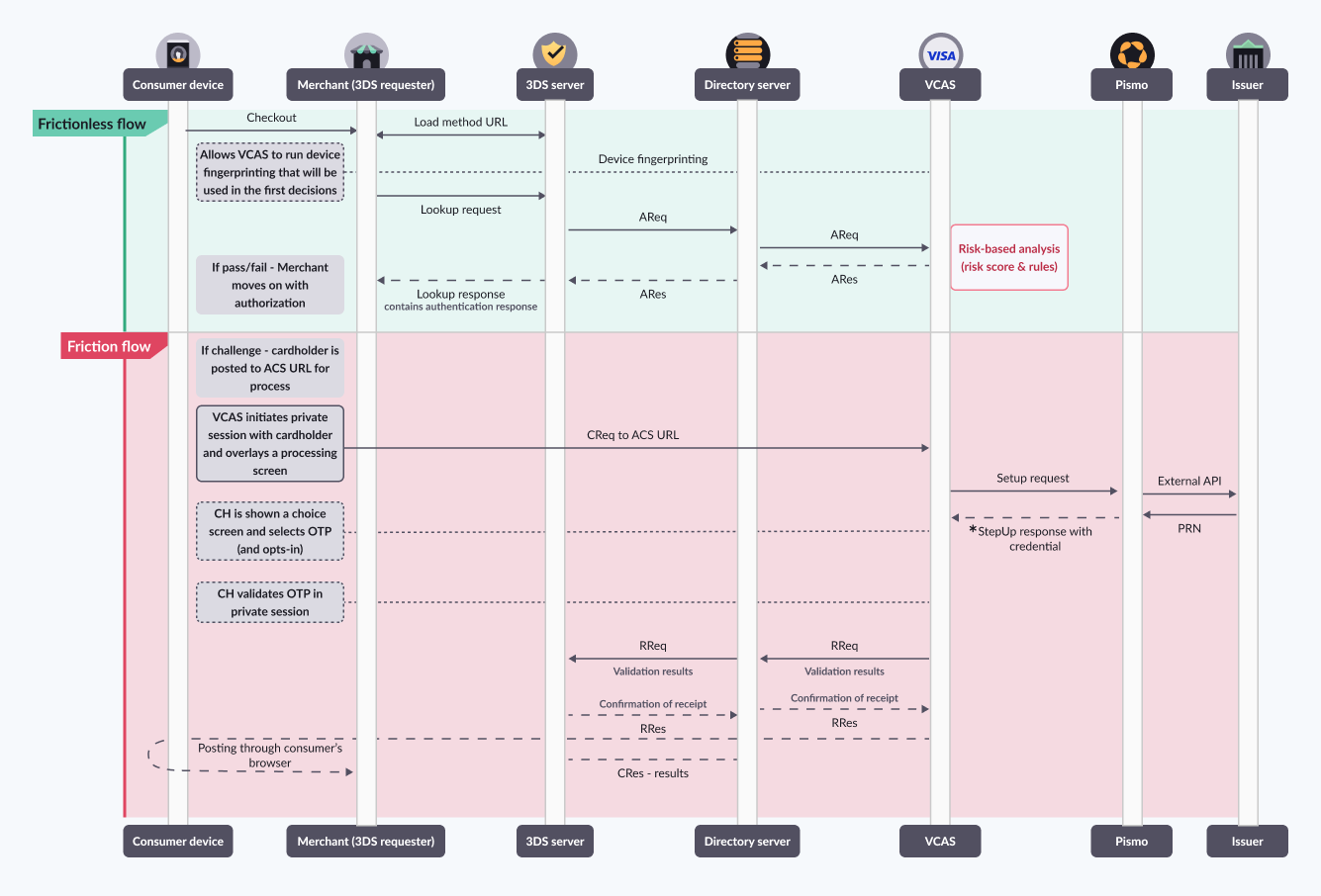

Use case #1

*You can use the Pismo static decision module

In this case, VCAS generates, delivers, and validates the OTP. In the sample steps below, the issuer does not implement the Initiate Action webhook.

1. E-commerce site calls VCAS with OTP request.
2. VCAS calls Pismo with OTP request and PAN
3. Pismo calls issuer's StepUp webhook .
4. Issuer responds with OTP delivery channel (SMS or email) and informational texts.
5. Pismo sends issuer's response to VCAS.
6. VCAS generates OTP verification code.
7. VCAS notifies ecommerce site of delivery channel.
8. E-commerce site prompts cardholder for OTP verification code.
9. VCAS sends verification code to cardholder via delivery channel.
10. Cardholder enters OTP verification code at e-commerce site.
11. E-commerce site sends entered OTP verification code to VCAS for validation.
12. VCAS validates OTP verification code and sends result to e-commerce site.

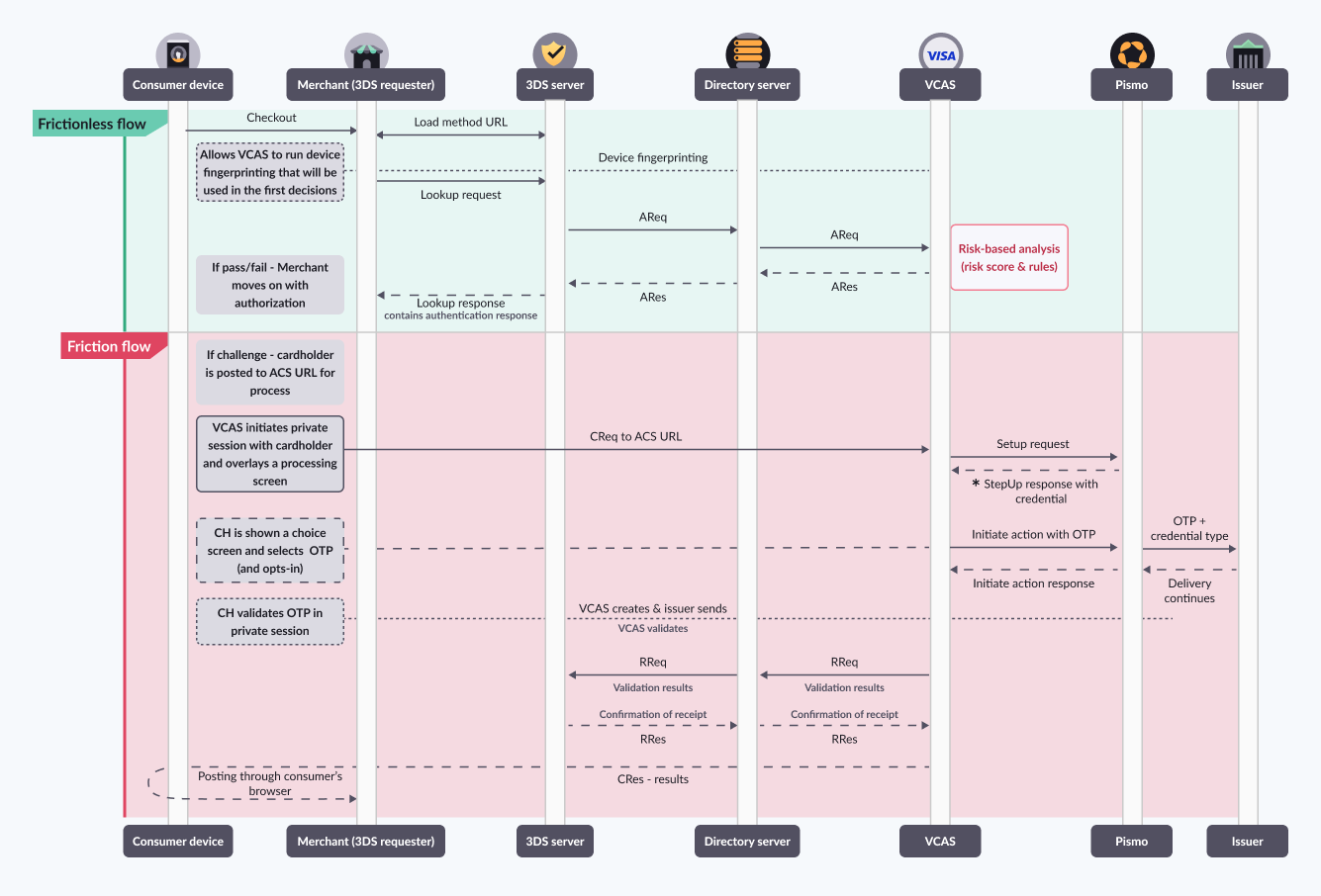

Use case #2

*You can use the Pismo static decision module

In this case, the issuer generates, delivers, and validates the OTP. In the example steps below, the issuer implements Initiate Action and Validate webhooks.

1. E-commerce site calls VCAS with OTP request.
2. VCAS calls Pismo with OTP request.
3. Pismo calls issuer's StepUp webhook.
4. Issuer responds with delivery channel (SMS or email) and informational texts.
5. Pismo sends issuer's response to VCAS.
6. VCAS notifies e-commerce site of delivery channel.
7. E-commerce site prompts cardholder for verification code.
8. VCAS calls Pismo to initiate action.
9. Pismo calls issuer's Initiate Action webhook.
10. Issuer generates verification code.
11. Issuer sends verification code to cardholder via delivery channel.
12. Cardholder inputs verification code at e-commerce site.
13. E-commerce site calls VCAS to validate entered verification code.
14. VCAS calls Pismo to validate entered verification code.
15. Pismo calls issuer's Validate webhook.
16. Issuer responds with validation result.
17. Pismo sends validation result to VCAS.
18. VCAS sends validation result to e-commerce site.

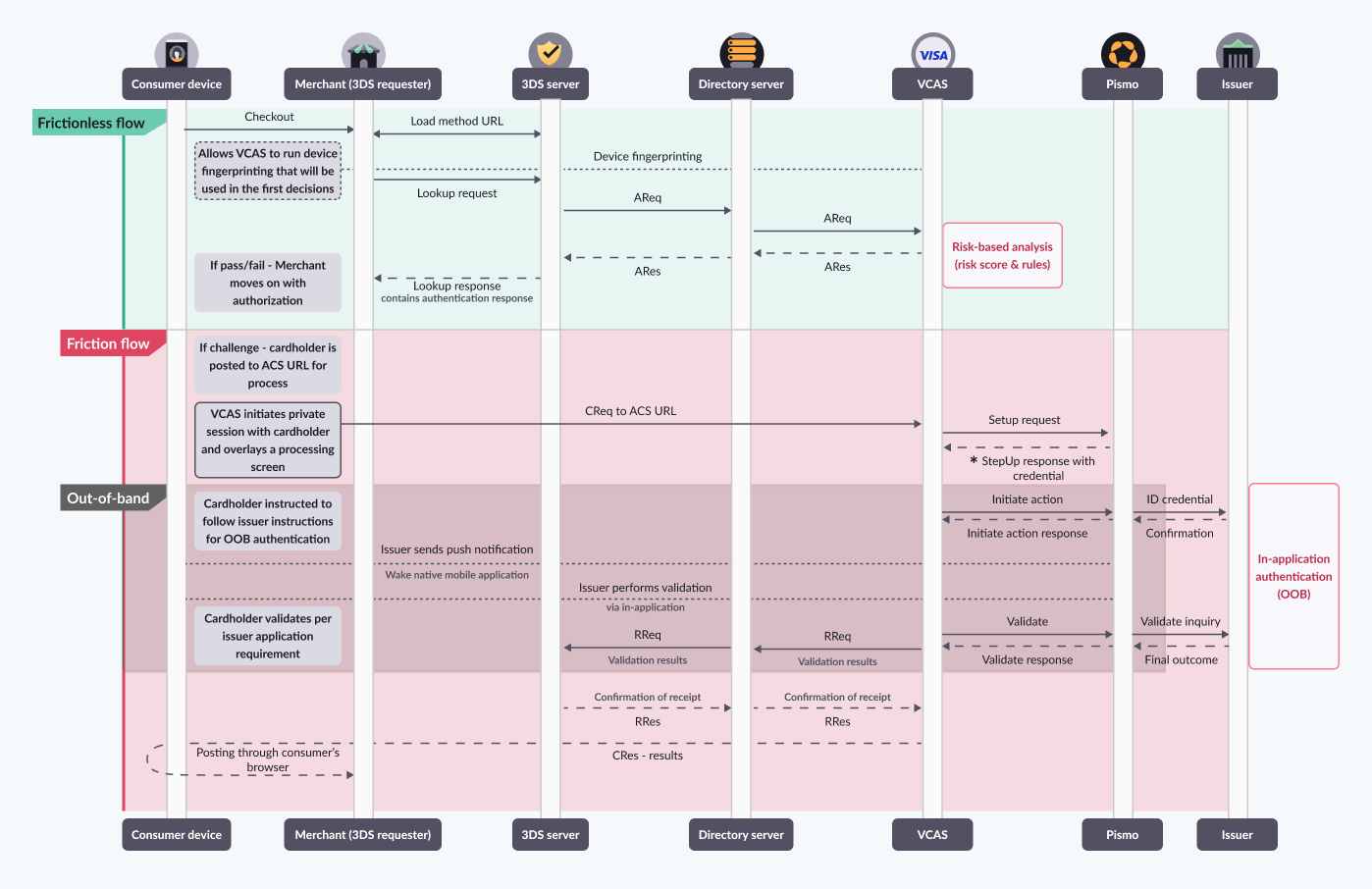

Use case #3

*You can use the Pismo static decision module

In this case, VCAS generates, issuer delivers, and VCAS validates the OTP. In the example steps below, the issuer implements the Initiate Action webhook.

Here, Pismo receives the request from VCAS and engages with the issuer to initiate the
OOB process. This use case requires integration between Pismo and the issuer bank, outside of
VCAS solution scope.

1. E-commerce site calls VCAS with OTP request.
2. VCAS calls Pismo with OTP request.
3. Pismo calls issuer's StepUp webhook.
4. Issuer responds with delivery channel (SMS or email) and informational texts.
5. Pismo sends issuer's response to VCAS.
6. VCAS generates OTP verification code.
7. VCAS calls e-commerce site to notify user of delivery channel.
8. E-commerce site prompts user for verification code.
9. VCAS calls Pismo to initiate action.
10. Pismo calls Issuer's Initiate Action webhook.
11. Issuer sends verification code to cardholder via delivery channel
12. Cardholder enters verification code.
13. E-commerce site sends entered verification code to VCAS for validation.
14. VCAS validates entered verification code and sends result to e-commerce site.
