The Central Bank of Brazil (BACEN) created Pix Automatic - a Pix (Brazilian instant payment system) feature that allows for scheduled and automatic recurring transfers. Customers that make recurring payments, such as subscriptions, school fees, rent, and more, will find this feature useful.

With Pix Automatic, you can define a specific amount and frequency (daily, weekly, monthly, and so on.) so that the transfer is automatically executed on a scheduled date without the need for a manual transaction. This automation facilitates financial management and payment punctuality.

PIX Automatic is expected to replace many use cases that boletos and traditional direct debit systems currently handle, making the payments landscape in Brazil more efficient, user-friendly, and digital-native.

Pismo provides a full set of API endpoints to implement this feature.

Key features

• Automatic and recurring payments—Allows users to authorize merchants or service providers to automatically charge them on a scheduled basis—perfect for things like subscriptions, utility bills, or loan repayments.
• Pre-authorization—Payer gives one-time consent for future payments. After that, the merchant can initiate charges at agreed-upon intervals.
• Real-time settlement—Just like regular Pix, funds move instantly—except now it happens without manual approval each time.
• 24/7 availability—Payments can be processed anytime, even on weekends and holidays.
• Security and transparency—All charges are clearly displayed to the user, with options to review, cancel authorization, or limit payment amounts/frequency.

Benefits

• For consumers—No missed payments, more control than traditional direct debits.
• For businesses—Predictable cash flow, lower transaction costs than cards, reduced churn.
• For banks/fintechs—New revenue models via value-added services and better customer engagement.

Scheduled transfers versus Pix Automatic

Pix Automatic use cases (journeys)

The following uses cases are referred to as journeys in the official Pix Automatic documentation.

Journey flows

Journey one flow

Journey one is a direct API Request using authorization_id. The receiver exclusively initiates this journey via API that sends a recurrence request to the Payer. It is identified by authorization_id and recurrence_id.

Step 1—Payee initiates recurrence request

Payee initiates recurrence request via Create recurrence (POST /v1/pix/automatic).

Payee events generated:

• Pix recurrence status changed, status = CREATED.
• Pix recurrence authorization status changed, status= CREATED

Step 2—Payer receives request

Payer events generated:

• Pix recurrence status changed, status = CREATED.
• Pix recurrence authorization status changed, status= CREATED

Step 3—Payer acknowledges the recurrence request (it's automatically done by Pismo )

Payer events generated:

• Pix recurrence authorization status changed, status= RECEIVED

Payee events generated:

• Pix recurrence authorization status changed, status= RECEIVED

Step 4— Pismo notification

A notification must be delivered for the paying user asking for confirmation or rejection of the
recurrence—Pix recurrence authorization status changed, status= RECEIVED

if the payer does not answer until the expiration date the recurrence request will
automatically expired.

Payer generated event:

• Pix recurrence authorization status changed, status= EXPIRED

Payee generated event:

• Pix recurrence authorization status changed, status= EXPIRED

Step 5 —Payer confirms or rejects recurrence

Payer confirms or rejects recurrence— Accept/reject recurrence authorization (POST /v1/pix/automatic/payer/authorization).

Payer generated events:

• Pix recurrence status changed, status= ACCEPTED or REJECTED
• Pix recurrence authorization status changed, status= ACCEPTED or REJECTED

Payee generated events:

• Pix recurrence status changed, status= ACCEPTED or REJECTED
• Pix recurrence authorization status changed, status= ACCEPTED or REJECTED

Step 6—Payee receive payer’s confirmation

Payee generated events:

• Pix recurrence status changed, status= APPROVED

Payer generated events:

• Pix recurrence status changed, status= APPROVED

.

Journey two flow

Journey 2 – QR Code with COBR (no prior payment). The Receiver generates a QR Code containing only a COBR location. The Payer reads the QR Code and accepts the recurrence. No payment is required upfront.

Step 1—Receiver generates recurrence

Payer accepts recurrence with QR Code Create recurrent COB QR Code(POST

/qrcode/v1/pix/qrcode/recurrence).

Step 2—Payer reads the QR Code

Payer reads the QR code Validate QR Code(POST /pix/v1/pix/qrcode/validate).

Step 3—Pismo creates recurrence for the payer

Pismo creates recurrence for the payer (status = WAITING_DEFINITION).

Step 4—Payer accepts recurrence

Payer accepts recurrence via Accept/reject recurrence authorization (POST /v1/pix/automatic/payer/authorization)

Journey three flow

Journey 3 – QR Code with COB + COBR (mandatory payment). The Receiver generates a QR Code with two locations:

1. COB (immediate payment)
2. COBR (recurrence proposal)

The Payer must successfully complete the COB payment to activate the COBR recurrence. If either location is invalid, the process fails.

Step 1—Receiver generates recurrence with composite QR Code

Receiver generates recurrence with composite QR Code—Create recurrent COB QR Code (POST /qrcode/v1/pix/qrcode/cob/recurrence).

Step 2—Payer reads the QR Code

Payer reads the QR Code—Validate QR Code (POST /pix/v1/pix/qrcode/validate).

Step 3—Payer executes immediate payment

Payer executes immediate payment—Pix-out transfer (POST /pix/v1/pix/out/transfer).

Step 4—Pismo receives payment confirmation

Pismo receives payment confirmation—Pix-out notification received

Step 5—Payer accepts the recurrence

Payer accepts the recurrence via Accept/reject recurrence authorization POST /v1/pix/automatic/payer/authorization

Journey four flow

Journey 4 – Offer after payment (COBV or static). The Receiver generates a QR Code containing either a COBV (charge without due date) or a static charge + COBR. The Payer reads the QR Code and may accept the recurrence after completing or scheduling the payment.

Step 1—Receiver creates recurrence with charge

Receiver creates recurrence with charge (COBV or Static).

Step 2—Payer reads the QR Code

Payer reads the QR Code—Validate QR Code (POST /pix/v1/pix/qrcode/validate).

Step 3—Payer completes or schedules payment

Payer completes or schedules payment—Schedule transfer (POST /pix/v1/pix/out/transfer or /pix/v2/pix/out/scheduler).

Step 4—Payer accepts the recurrence

Payer accepts the recurrence via Accept/reject recurrence authorization( POST /v1/pix/automatic/payer/authorization)

Pix Automatic transaction flow

The following is a simplified flow for a typical Pix Automatic transaction.

Step 1 - Merchant sends payment recurrence request

The merchant (e.g., gym, streaming service) initiates a recurring payment request to the customer’s bank.

Request includes the following:

• Payer identification and data
• Receiver Identification and data
• Payment amount
• Frequency (daily, weekly, monthly, and so on)
• Automatic transactions start date and, if necessary, end date.

Step 2 - Customer receives authorization request

The customer is notified via their banking app to authorize the recurring payment.

Step 3 - Customer authorizes payment

Upon reviewing the details, the customer approves the recurring payment agreement.

Step 4 - Recurring payments executed automatically

On the agreed dates, payments are automatically debited from the customer’s account and credited to the merchant, without further action needed from the customer.

Step 5 - Notifications sent

Both the customer and merchant receive confirmations for each successful transaction.

Recurrence value types

Pix Automatic supports two billing configurations for recurrences types: fixed amount and variable amount. The receiver defines the type at recurrence creation time using the dynamic_amount parameter.

Fixed amount

• dynamic_amount = false
• The Receiver must specify the exact recurrence value using the amount field. The amount value is used for recurrences

Variable amount

• dynamic_amount = true
• The Receiver must define a min_payment_amount (minimum amount per charge).
• The Payer, during recurrence acceptance, just define a max_payment_amopunt (minimum amount they are willing to pay per change).
• If the payer does not specify a maximum amount, then there is no upper limit for accepting payment orders.

Updating recurrence values

To update a recurrence's minimum and maximum values, call the Update automatic recurrence (PATCH /v1/pix/automatic/{recurrence_id}) endpoint.

Notes:

• The Receiver can update the minimum amount (min_payment_amount) only before the recurrence is accepted.
• The Payer can update the maximum amount )max_payment_amount) at anytime, even after acceptance.

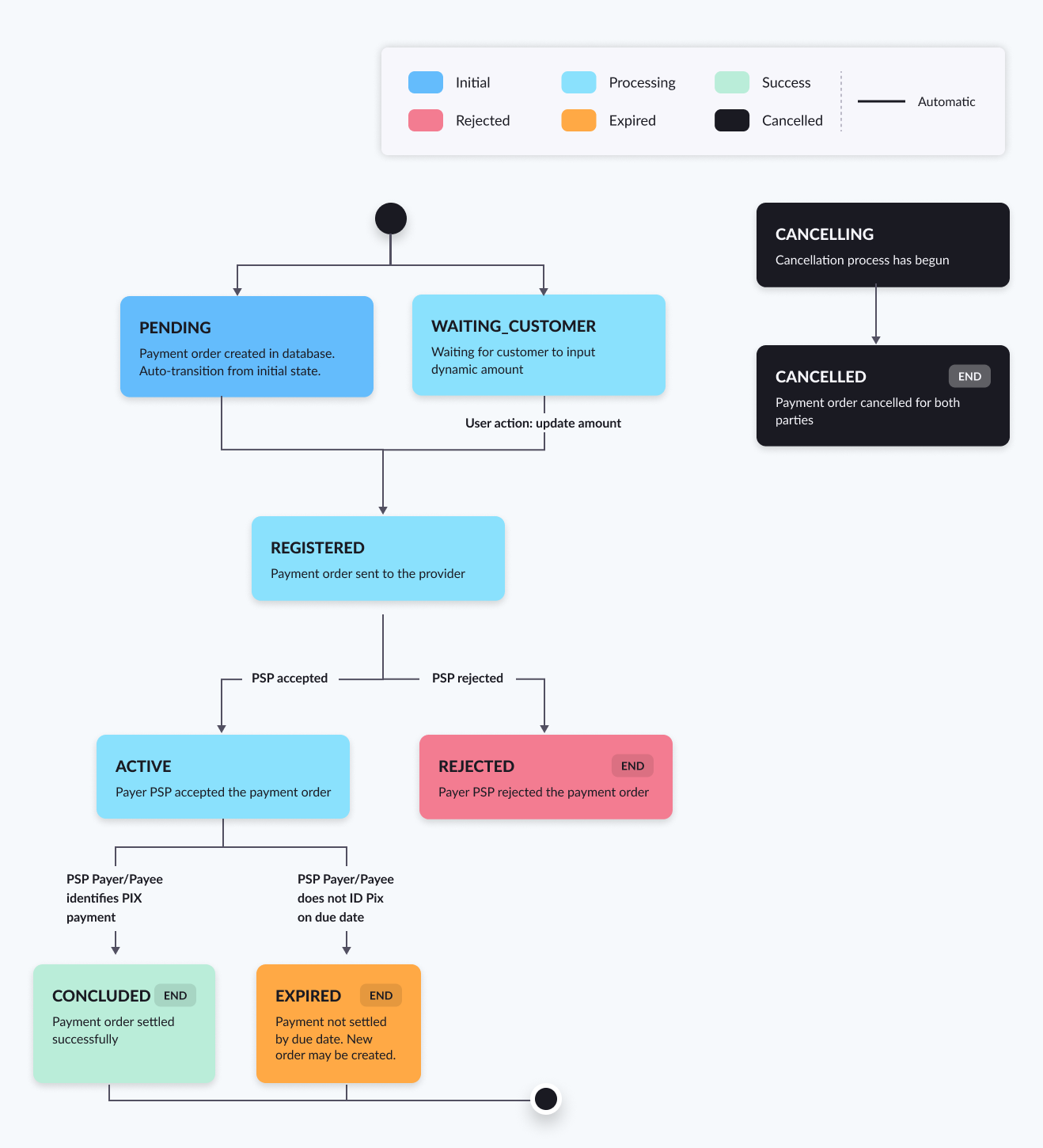

Payment orders

In the payment order process, the Receiver’s payment service provider (PSP) sends payment instructions to the Payer’s PSP. Between 10 and 2 days before the due date, the payer receives this order and performs validations. Once accepted, the payment is scheduled for execution on the due date.

The payer's authorization is required in the recurring with authorization flow. Once authorized, the recurrence automatically generate payment orders.

There are two distinct flows for payment orders: Payer and Receiver.

Receiver flow

In the Receiver flow, behavior depends on the recurrence value type:

• Fixed value—The payment order is generated and sent immediately. This generates a Pix recurrence payment order status changed event.
• Variable value
  • Pismo generates the payment order and sends it to the receiver client, who must then pass the actual payment amount using the Update payment order amount endpoint. This generates a Pix recurrence payment order status changed event with status = WAITING_CUSTOMER.
  • Pismo waits for the receiver to send the amount via Update payment order amount.

Payer flow

In the Payer flow, when Pismo receives the payment order, it performs validations to determine whether to:

• Accept the order and schedule the payment execution, or
• Reject the instruction and notify the receiver’s PSP.

Rejection conditions and error codes

Rejection conditions

• Authorizations expired or does not exist
• Authorization was cancelled
• Fixed amount mismatch
• Variable amount exceeds maximum
• Duplicate charge for same cycle
• Receiver mismatch
• Instruction outside scheduling window (2-10 days before due date)

Error codes for instruction validation

• AC06 - Payer's transactional account blocked
• AM02 - Charge amount exceeds authorized maximum
• AM09 - Charge amount does not match recurrence
• DENC - Payer CPF/CNPJ mismatch
• DTED - Due date conflicts with recurrence rules
• DTNT - Post-due attempts exceed D+8
• FBRD - Pain.013 received outside business window
• IRNT - Recurrence does not allow post-due retries
• MIDI - Invalid or nonexistent recurrence ID
• MSUC - Recurrence not confirmed by payer
• NIEC - Duplicate payment order already pending
• NIPA - Payment already completed
• NITX - Instruction does not match previous charge
• QUNT - More than 3 retries in 7 days after due date
• UDEI - Invalid payer CPF/CNPJ

Acceptance and scheduling

Once accepted, Pismo schedules for payment and generates a Pix recurrence payment order status changed event with status = ACTIVE or REJECTED. The Receiver's PSP also receives this event.

Recurrence cancellation

Both the Payer and Receiver can cancel a recurrence via the Cancel recurrence (POST /v1/pix/automatic/cancel) endpoint. This endpoint generates a Pix recurrence payment order status changed event with status = CANCELLED and includes the cancellation reason (reasonobject) .

Payer-side behavior

• Pismo checks for active scheduled payments linked to the recurrence
• If a payment is scheduled for a future date (due_date greater than today), it is automatically cancelled
• If a payment is scheduled for today (due_date = today), it executes normally

Receiver-side behavior

• Pismo automatically cancels all future payment orders
• Payment orders scheduled for today are still executed

Payment order execution and retry

Due data execution

On the due date, Pismo attempts payment between 00:00 and 08:00 (Brasilia time). If successful the payer's PSP receives the Pix recurrence payment order status changed event with status = CONCLUDED and a Pix-out configuration.

Failure handling

If failure occurs before reaching the provider (i.e., insufficient funds)

• Pismo retries between 18:00 and 21:00
• No further attempts after 21:00

If failure occurs before reaching the provider (i.e., SPI (Brazil instant payment system) rejects reused end_to_end_ID)

• Pismo cancels the order and generates the Pix recurrence payment order status changed event with status = CANCELLED
• To proceed with a new payment attempt, Pismo generates, for the Receiver's PSP, a new payment instruction using a new end_to_end_ID, since the SPI does not allow previously submitted identifier reuse.

Retry flows

Post-due retry (RETRY_OVERDUE, SPI code NTAG)

• Triggered if payment not complete by 21:00
• Pismo checks retry eligibility and generates new order for D+2

Intra-day retry (RETRY_FAILUER, SPI code: RFIL)

• Triggered when Receiver's PSP gets cancellation with reason FAIL
• New order is generated for same settlement day

Payment order cancellation

Payment orders can be cancelled in two ways:

1. Pismo automatically cancels due to recurrence cancellation
2. Payer or Receiver manually cancels via the Cancel payment order (POST /v1/pix/automatic/payment/order/cancel) endpoint. This generates the Pix recurrence payment order status changed event with status = CANCELLING. After the counterparty confims the cancellation, the same event is generated with status = CANCELLED.

Note: Payment order cancellations are only allowed up to 24 hours before the due date.

Special case: Reason fail

If the cancellation reason is FAIL, Pismo may initiate an intra-day payment order retry within the Receiver-side flow using a new end_to_end_IDand a RETRY_FAILURE retry type.
