Integrate Pismo solutions with your applications and configure them according to your specific requirements using Pismo's 600+ integration endpoints. The API reference describes these endpoints and how to structure your API requests.

Endpoints in the API reference are grouped into the following high-level sections:

• Platform authentication
• Platform setup
• Core platform
• Banking
• Instant payments
• Card issuing
• Revolving credit
• Data and reporting
• Seller management
• Migrations
• Lending

📘

Endpoint search

To find a specific endpoint quickly, you can use the JUMP TO search field.

Endpoints at a glance

An API endpoint is a specific, addressable URL that points to a resource on the API server. It defines where a request is sent and what operation the API performs on the resource.

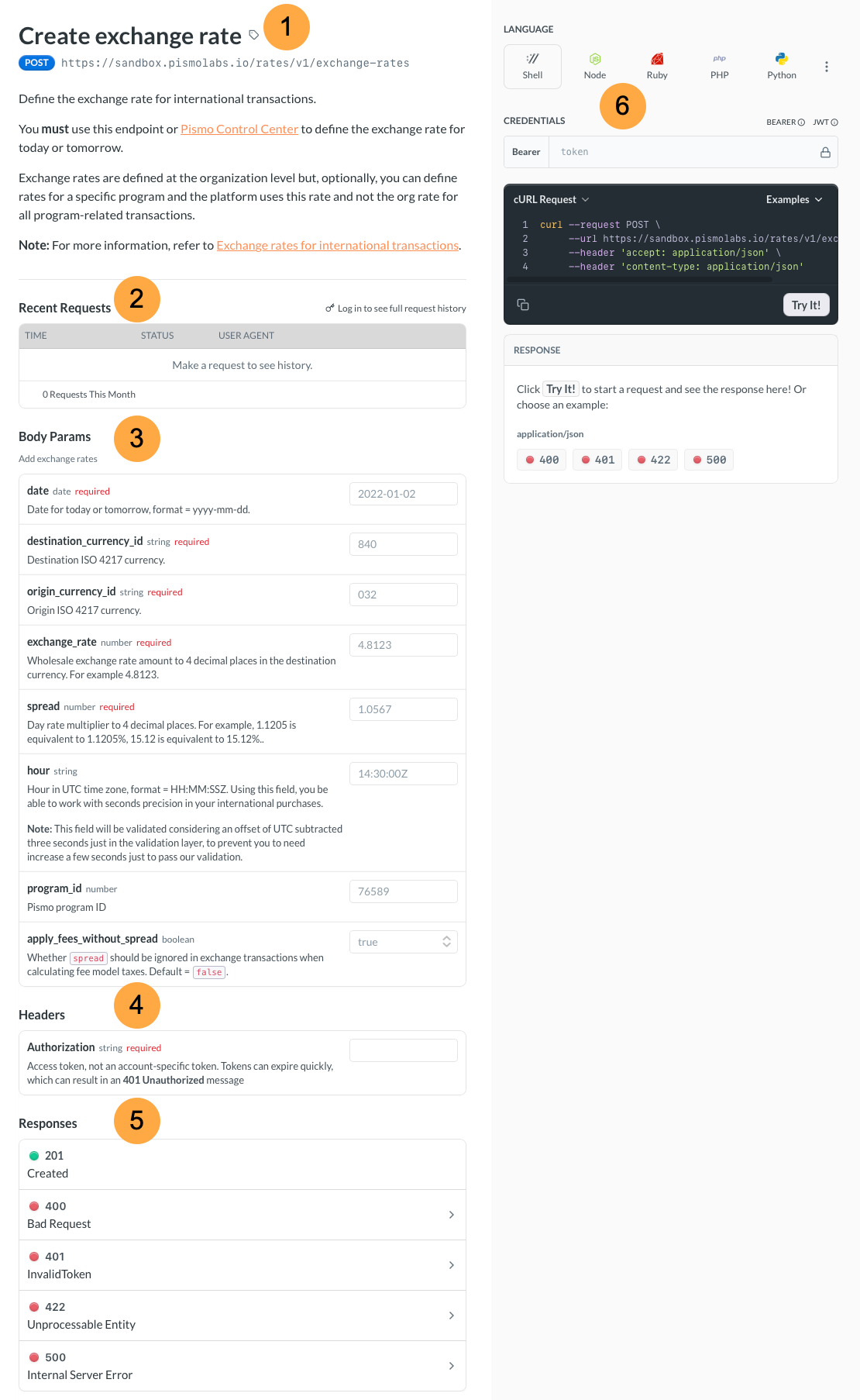

Refer to the following figure for an overview of a typical endpoint page in the Developers Portal.

To help you navigate the API reference, the following sections describe the standard elements on a typical endpoint page in the Developers Portal and how to build and test API requests. This overview is intended for both complete beginners and those who need a quick refresher on general and Pismo-specific API standards.

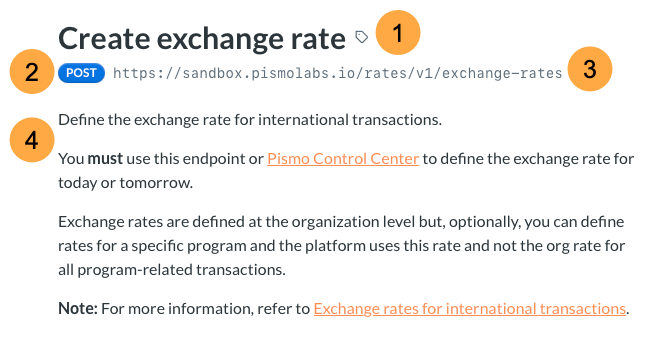

Endpoint description

The endpoint description defines the endpoint and describes the action you can do with it.

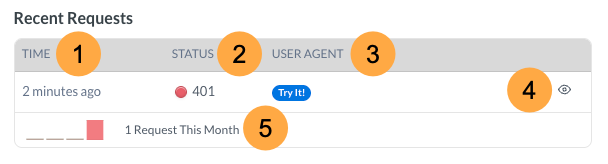

Recent requests

The Recent Requests table lists the most recent requests you sent through the interactive console.

Parameters

Parameters are inputs included in an API request that provide specific information or instructions for the API to process.

In Pismo's API reference, parameters are described with the following information:

• Name
• Data type
• If the parameter is required or optional
• Minimum and maximum value constraints, if applicable
• Description
• Example values

Pismo endpoints use the following three parameter types common to REST APIs:

• Path parameters
• Query parameters
• Body parameters

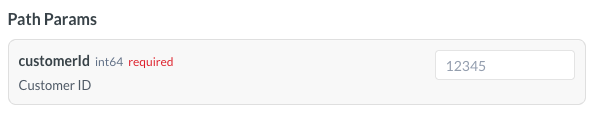

Path parameters

Path parameters identify a specific resource and are included as part of the endpoint URL. For endpoints that accept path parameters, you must always include the path parameters in the request.

For example, in https://sandbox.pismolabs.io/accounts/v2/customers/{customerId}, {customerId} is a placeholder for a real customer ID value. When you replace the placeholder with a customer ID, the URL points to the customer resource associated with the customer ID you entered.

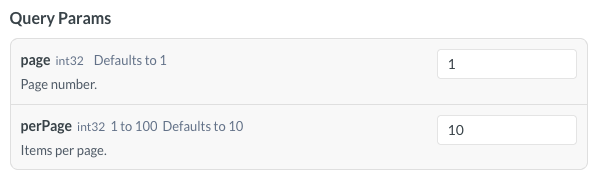

Query parameters

Query parameters filter the information returned in an API response. They're appended to the end of the endpoint URL, represented by a question mark (?).

For example, in https://sandbox.pismolabs.io/acquisitions/v2/programs/{programId}/channels?perPage=10, perPage=10 filters the response to list only 10 items per page.

📘

Multiple filters

You can include more than one query parameter in your request by separating each query parameter with an ampersand (&).

https://sandbox.pismolabs.io/acquisitions/v2/programs/{programId}/channels?page=1&perPage=10

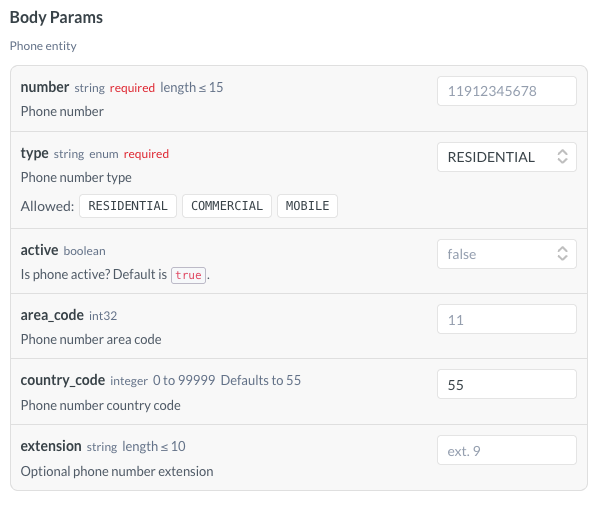

Body parameters

Body parameters are inputs included in the body of an API request. They provide the information the API needs to create or update a resource.

The structure and format of the request body depend on the programming language you use to send the request. Refer to the following code extract for an example of a typical request body in cURL, for the creation of a new account phone number.

     --data '
{
  "type": "RESIDENTIAL",
  "country_code": 55,
  "number": "11912345678",
  "active": true,
  "area_code": 11,
  "extension": "ext. 9"
}
'

The interactive console includes a language selector, so you can view request syntax in a variety of common languages. For more information, refer to Interactive console.

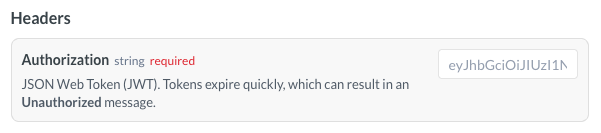

Headers

Headers are additional metadata included and sent with your request. They define how a request is processed, specify the request and response formats, and control access. Like parameters, each header listed in the Headers section includes useful information describing the header and its purpose.

You must include the following headers with all Pismo API requests:

• accept: application/json, which indicates the preferred API response format.
  In most cases, the accept header is already included in the interactive console by default and the field is not present in the Headers section.
• content-type: application/json, which indicates the request body format.
  In most cases, the content-type header is already included in the interactive console by default and the field is not present in the Headers section.
• authorization: Bearer <access_token>, which stores your authentication token and checks the request is sent from an authorized user or system.

📘

Authentication scheme

Pismo API requests are authenticated using the Bearer authentication scheme. When you send a request, make sure you format the authorization header correctly.

authorization: Bearer <access_token>

If you don't format the authorization header correctly, you'll get an error response.

For more information, refer to the following guides:

• Basic authentication with client credentials
• Authentication with OpenID Connect
• Authentication with OAuth2

📘

Endpoint-specific headers

Some endpoints accept additional headers specific to the endpoint. The purpose of these headers is described in the Headers section for each header.

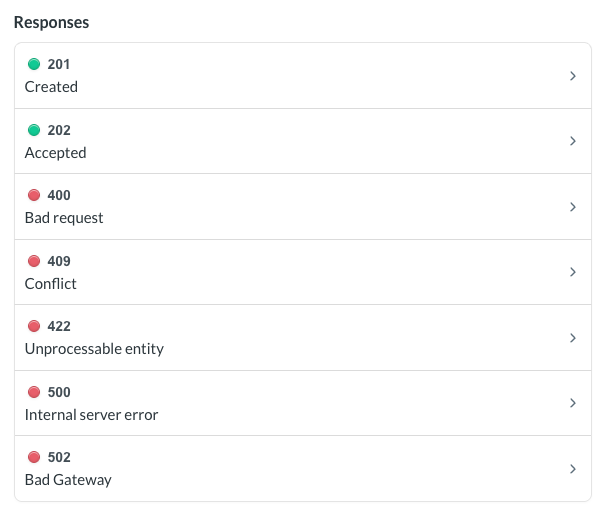

Responses

All API requests return a response. A response informs you if your request was successful and returns data relevant to the outcome of the request. The Responses section lists structured schemas for the possible responses returned by the API for a particular endpoint.

A response schema defines the expected response and includes the following information:

• An HTTP status code
• A short summary
• Details of each attribute included in the response along with a short description

The HTTP status code is a standardized numerical code that defines the general classification of a response and is included with all API responses. Refer to the following table for an overview of the status codes used in REST APIs.

For more information on API responses and response examples, refer to Interactive console.

Interactive console

Use the interactive console to test requests in a sandbox environment directly from the Developers Portal.

Key	Item	Description
1	LANGUAGE selector	Specifies the programming language shown in the code editor Select for a list of additional language options.
2	CREDENTIALS field	Accepts and stores your authentication token The CREDENTIALS field is not always present. Depending on the endpoint, an authentication token field is instead included in the Headers section. For more information, refer to Headers.
3	URL drop-down	Defines the sandbox server where the request is sent The URL drop-down is only included for endpoints that have server-specific constraints. For example, if you're sending a request that handles cardholder data, you must use the dedicated Payment Card Industry (PCI) server. https://gw-pci.pismolabs.io If the URL drop-down is not present on a particular endpoint page, your request is sent to the default https://sandbox.pismolabs.io server. For more information, refer to Environments.
4	Code editor	Shows the request in your selected programming language The code editor updates automatically based on the values you provide in the following sections and fields: Path Params Query Params Body Params Headers CREDENTIALS URL
5	RESPONSE pane	Displays the response to your request The RESPONSE pane also provides endpoint-specific examples of successful and failed responses with mock data, showing how a typical real-world example is formatted.

To send a request using the interactive console, do the following:

1. Read the endpoint overview and make sure you meet all the prerequisites.
2. Configure the request parameters and headers.
3. From LANGUAGE, select a programming language.
4. If applicable, do the following:
   • In CREDENTIALS, enter your authentication token.
   • From URL, select the server where you want to send the request.
5. Select Try it!
   The request is sent and the response is displayed in the RESPONSE pane.

Refer to the following figure for an overview of the request process, using the Get organization endpoint as an example.
